This article will demonstrate how to configure the Syncplicity Storage Connector to send its health metrics data feed to Splunk, and how to set up some basic graphs which can be used to monitor the performance and health of the Storage Connector.
Overview
Splunk helps you search, monitor, and analyze machine-generated big data via a web-style interface. Splunk captures, indexes, and correlates real-time data in a searchable repository from which it can generate graphs, reports, alerts, dashboards and visualizations.
This guide will walk you through the process of connecting Storage Connectors to Splunk.
Universal forwarder
The Syncplicity Storage Connector supports sending metrics to Splunk via TCP in plain text format. Alternatively, since Storage Connectors provide the same health data via JMX interface, you can set-up a Splunk "universal forwarder" to collect health metrics and logs and forward them to Splunk.
Set-up Splunk
We assume that a Splunk instance is already installed and configured and that Splunk UI is available at host "splunk.internaldomain.com" and port "8000". For installation and troubleshooting guidance, consult Splunk documentation.
Storage Connector configuration
The first action is to add several new configuration settings in the Storage Connector config file. The default location of this config file is /etc/syncp-storage/syncp-storage.conf. The file is written in HOCON format; please see Using HOCON for reference.
You will need to add the following 5 lines to your config file:
syncplicity.health.enable syncplicity.health.external.enable syncplicity.health.external.host syncplicity.health.external.port syncplicity.health.external.prefix
It is recommended that you add these to the very end of the file.
The proceeding steps will go through how to input the values for each setting.
Step 1
On the Storage Connector node, open the config file for editing.
Step 2
Ensure that health monitoring is enabled.
syncplicity.health.enable = true
Step 3
Enable health metrics to be exported to an external port.
syncplicity.health.external.enable = true
Step 4
Specify the Splunk host URL:
syncplicity.health.external.host = splunk.internaldomain.com
Step 5
Specify the Splunk TCP input port.
syncplicity.health.external.port = 4003
Step 6
Set a prefix for the the health metrics. When an additional prefix is specified, such as "myCluster.myNode", all metrics roll up under the myCluster.myNode.syncp.compute.v1.* path.
syncplicity.health.external.prefix = myCluster.myNode
Alternatively you can use UNIX environment variables to set the prefix. For example, if you have these environment variables set:
HOST=$(hostname -s) CLUSTER="myCluster"
Then you can configure this setting in the config file as:
syncplicity.health.external.prefix = $CLUSTER.$HOST
Step 7
Save your changes to the config file and restart the Storage Connector Service.
Splunk configuration
Now that you have changed the settings on the Storage Connector to enable health metrics and send them to Splunk, you need to make some changes within Splunk to start visualizing those metrics.
Step 8

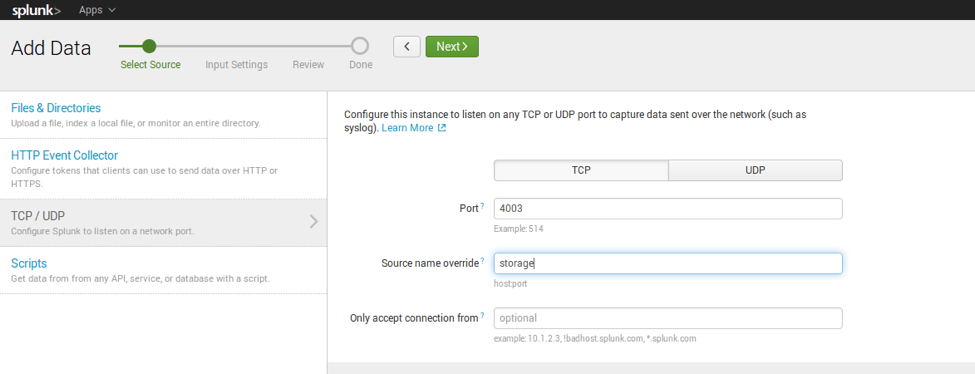

In the top right menu click Data inputs and add another TCP source with port 4003 and name it "storage".
Step 9

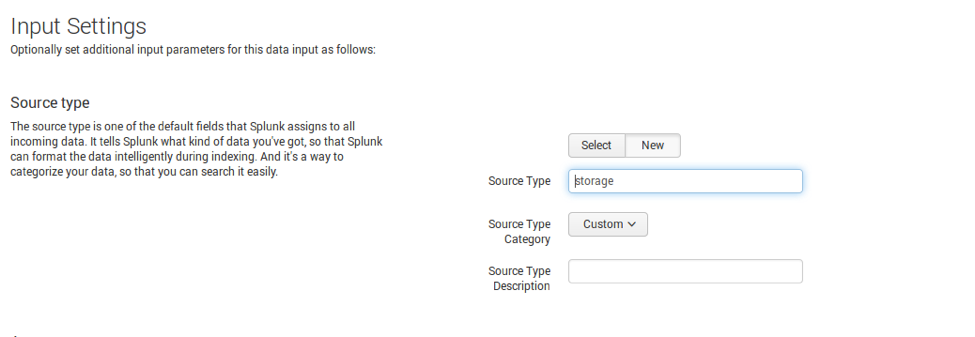

Proceed to the next screen. Select "New" source type, and for the source type select Custom and name it "storage".
Step 10

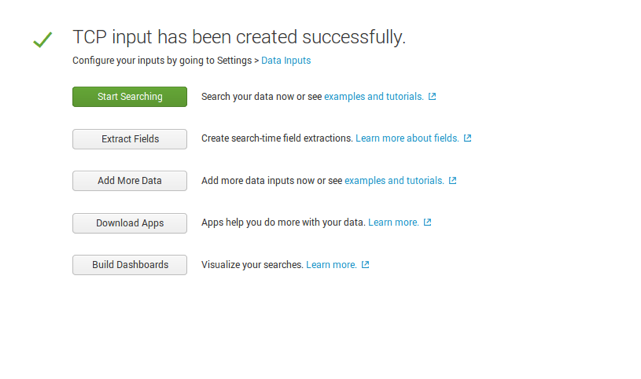

Proceed to the next screen. You should see the message "TCP input has been created successfully."
Step 11
Now we'll need to extract useful fields from the received metrics. Click on the "Extract fields" button and click on the "I prefer to write the regular expression myself" link.
The metrics will be received in the following format:
${dot.separated.path} ${value} ${unix_timestamp}\n
We'll assume that custom prefix is specified as a clusterName.hostName.

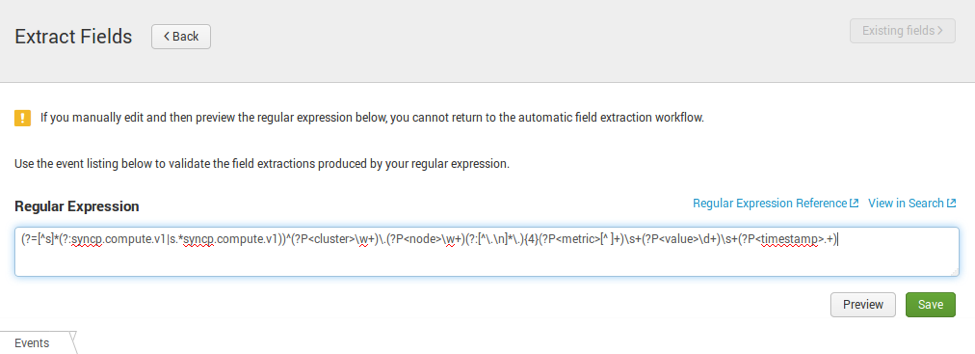

Put the following regex into the "Regular Expression" text input in order to extract the cluster name, host name, metric id, metric value, and metric timestamp fields from the input events:
(?=[^s]*(?:syncp.compute.v1|s.*syncp.compute.v1))^(?P<cluster>\w+)\.(?P<node>\w+)(?:[^\.\n]*\.){4}(?P<metric>[^ ]+)\s+(?P<value>\d+)\s+(?P<timestamp>.+)
Click save and then Finish. Now Splunk is configured and ready to explore Storage Connector health data.
Using Splunk to display health metrics
The following examples will demonstrate how to construct queries to render the data and generate graphs for 3 scenarios
- Total number of requests being made
- Amount of traffic transferred in and out
- Heap status
Additionally, you can specify that this data be collected for just the latest 10 minutes.
Example 1 "Total number of requests being made"
Perform a new search. In the search string enter the following line:
index=* sourcetype=storage sourcetype= storage node = "***" metric = syncRequests.currentDownloadRequestsCounter OR metric = syncRequests.currentUploadRequestsCounter | timechart bins=200 avg(value) by metric useother=no limit=10
In the top right corner click Save As -> Dashboard panel.
Select a new dashboard, name it Storage Health Status, use Total requests for the panel name, and click Save.

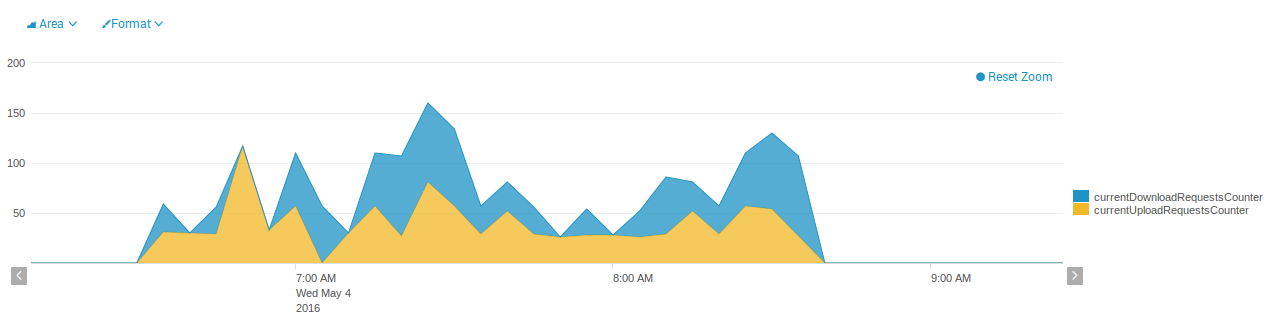

The screen should display a chart similar to the one shown below:
Example 2 "Total data transfer in/out"
Perform another search. For a query use the following line:
index=* sourcetype= storage sourcetype=storage node = "***" metric = transfer.in.bytes OR metric = transfer.out.bytes | timechart bins=200 avg(value) by metric useother=no limit=10
In the top right corner click Save As -> Dashboard panel.
Select the existing dashboard and then "Storage Health Status". Name the panel "Bytes In/Out". Click Save.

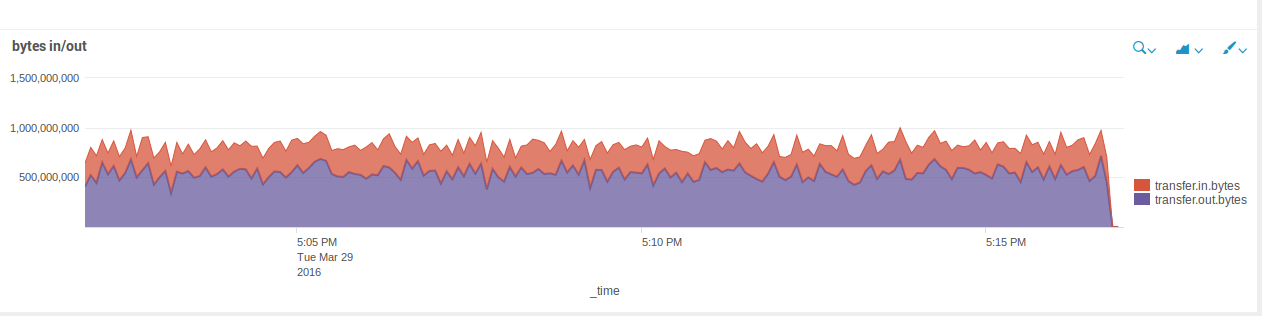

The screen should display a chart similar to the one shown below:
Example 3 "Heap status"
Perform a third search. For the query use the following line:
index=* sourcetype=storage sourcetype=storage node = "***" metric = jvm.heapUsed | timechart bins=200 avg(value) by metric useother=no limit=15
In the top right corner click Save As -> Dashboard panel.
Select the existing dashboard and then "Storage Health Status".
Name the panel JVM Heap". Click Save.

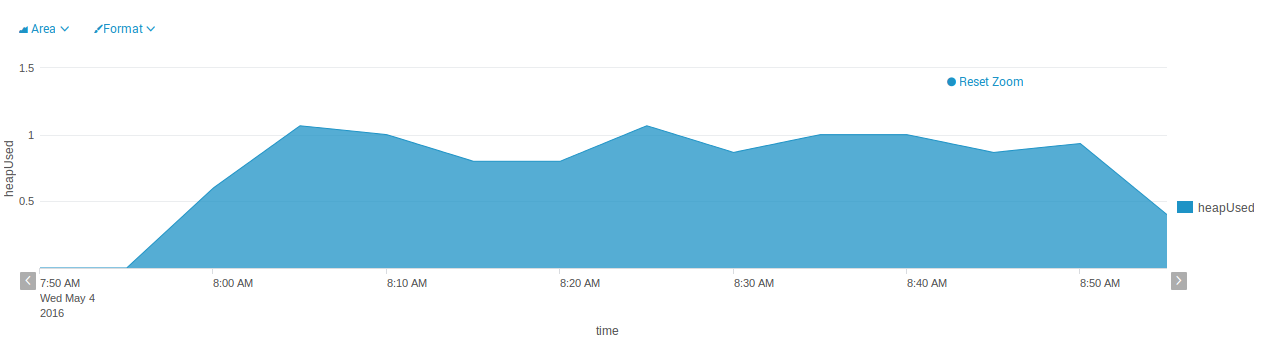

The screen should display a chart similar to the one shown below:
